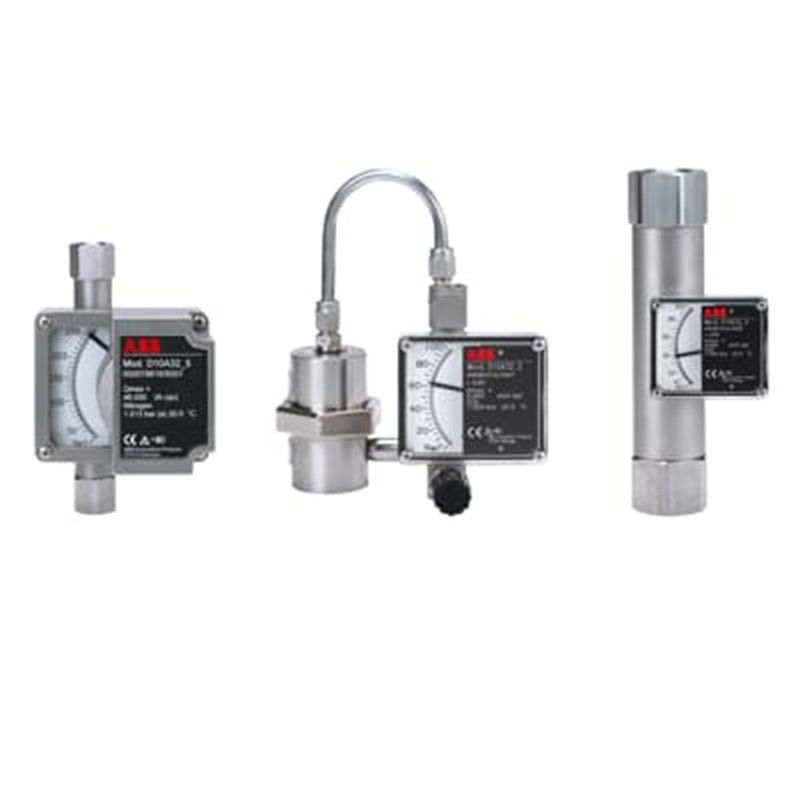

ABB Vortex Flow Meter Armored Variable Area Purgemeter FAM3200
  • ABB Vortex Flow Meter Armored Variable Area Purgemeter FAM3200
ABB Vortex Flow Meter Armored Variable Area Purgemeter FAM3200

ABB Vortex Flow Meter Armored Variable Area Purgemeter FAM3200

Brand Name ABB
Model Number FAM3200
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

4ma vortek flow meter

,

20ma vortek flow meter

,

FAM3200 abb vortex flow meter

Product Description

Armored variable area purgemeter FAM3200

The FAM3200 is an armored purgemeter designed to meter small gas and liquid flows. This meter is especially suited for applications with cloudy, opaque or aggressive fluids in chemical and pharmaceutical industries, gas analyzers, process systems, well systems and wherever glass metering tubes cannot be used for safety reasons.

Overview

The solution for the following application areas:

  • Water purification
  • Gas sampling systems, nitrogen generators
  • Burner control
  • Chemical injection
  • Food and beverage applications

Data

General specifications:

  • Application
    – Clean, low viscosity liquids and gases
  • Mounting
    – Vertically, in line or wall mouted
  • Connections
    – 1/4 to 1 in., threaded, vertical or horizontal
  • Flow ranges
    – Water flows: 1 to 3000 l/h
  • Flow turndown
    – Typically 10:1
  • Operating pressure
    – Up to 100 bar (1450 lbf/in 2 g)
  • Operating temperature
    – Up to 180 °C (356 °F)
  • Accuracy
    – Class 6
  • Alarms
    – Slot sensors, up to 2 off
  • Tube material and float material
    – Stainless steel

ABB Vortex Flow Meter Armored Variable Area Purgemeter FAM3200 0ABB Vortex Flow Meter Armored Variable Area Purgemeter FAM3200 1
