PSA Oxygen Generator
>
|
| Place of Origin | China |
| Brand Name | Eco-Tech |
| Certification | CE ISO13485 ISO9001 |
| Document | Product Brochure PDF |
PSA Oxygen Generator-Containerized
Main features of PSA Oxygen Generator-Containerized:
Standard features
Optional features
Applications

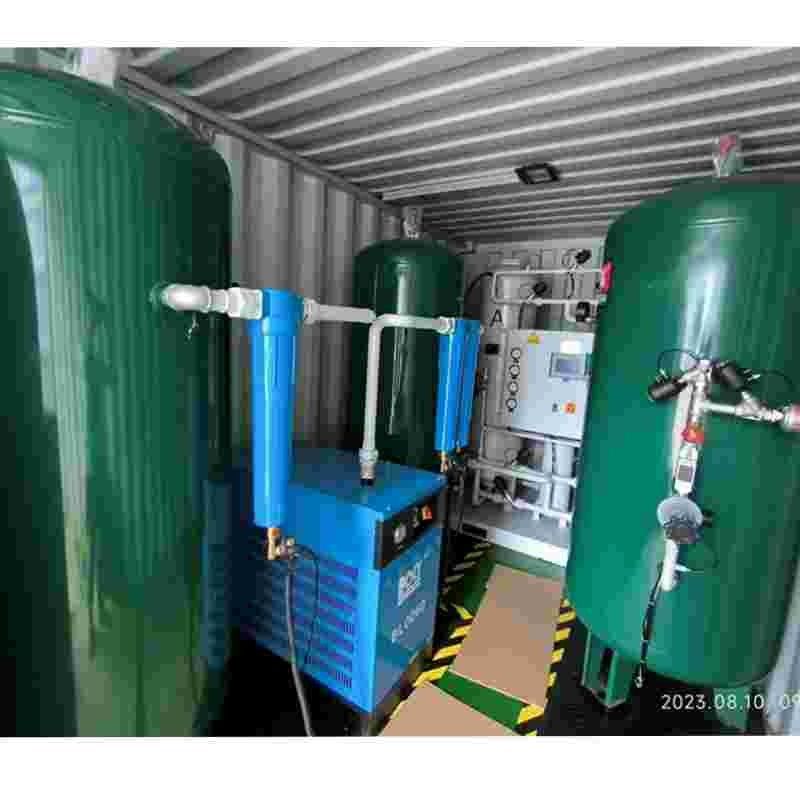

About the customization details inside the container
1. Top cable groove: take the power cable
2. The silencer (the one at the top is for testing, because it's very noisy). The one behind is the automatic hollow silencer
3. 2 lamps (50W or 100W)
4. Cooling air duct of air conditioner, used for heat dissipation
5. Structure of the container itself
6. Windows for light or air
7. Main cabinet: power supply to all equipment in the container
8. The heat dissipation port of the air compressor: the heat dissipation port made for the air compressor ensures that the hot air is spread into the air.
| Range of the Containerzied Oxygen Generator | |||||||
| Model | O2 Flow (Nm3/h) | O2 Flow (LPM) | Equivalent cylinder-7m3(per day Nos) | Power With booster(Kw) | Power Without HPBC(Kw) | Purity | Container Size |
| PB-5C | 5 | 83 | 17 | 13 | 9 | 93%±3% | 2000*1000*1950mm |
| PB-10C | 10 | 167 | 34 | 22 | 16.5 | 93%±3% | 2000*1000*1950mm |
| PB-15C | 15 | 250 | 51 | 28 | 20.5 | 93%±3% | 3000*1700*2300mm |
| PB-20C | 20 | 333 | 68 | 43 | 32 | 93%±3% | 20HQ 5200*2300*2600mm |
| PB-25C | 25 | 417 | 85 | 43 | 32 | 93%±3% | 20HQ 5200*2300*2600mm |
| PB-30C | 30 | 500 | 102 | 55 | 40 | 93%±3% | 40HQ 12000*2300*2600mm |
| PB-40C | 40 | 667 | 136 | 63 | 48 | 93%±3% | 40HQ 12000*2300*2600mm |
| PB-50C | 50 | 833 | 170 | 76 | 57.5 | 93%±3% | 40HQ 12000*2300*2600mm |
