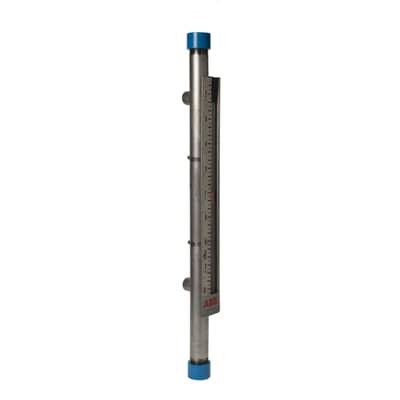

Econolev Magnetic Level Gauge LMG100

FEATURES:

• Standardized design configuration for simple selection
• Low cost
• 2 in. (50.8 mm) schedule 40, 316SS pipe chamber
• Gauge rated to 13.7 bar (275 psi) (150# flange rating) and 93.3 ˚C (200 ˚F)
• Threaded top and bottom gauge and cap design allows easy maintenance
• Clear sealed Lexan tube for shuttle indicator
• Welded, side connected, 1in. NPT-f process connections
• 1/2 in. NPT-f vent and drain connection with plug
• Stainless steel scale indication

OPTIONS:

• 316SS Threaded end caps (Standard is Carbon Steel)
• Magnetically actuated level switches
• Magnetostrictive level transmitter

Applications

• Diesel Storage tanks
• OEM tanks
• Water Treatment tanks
• Agricutural chemicals
• Most liquid tanks
