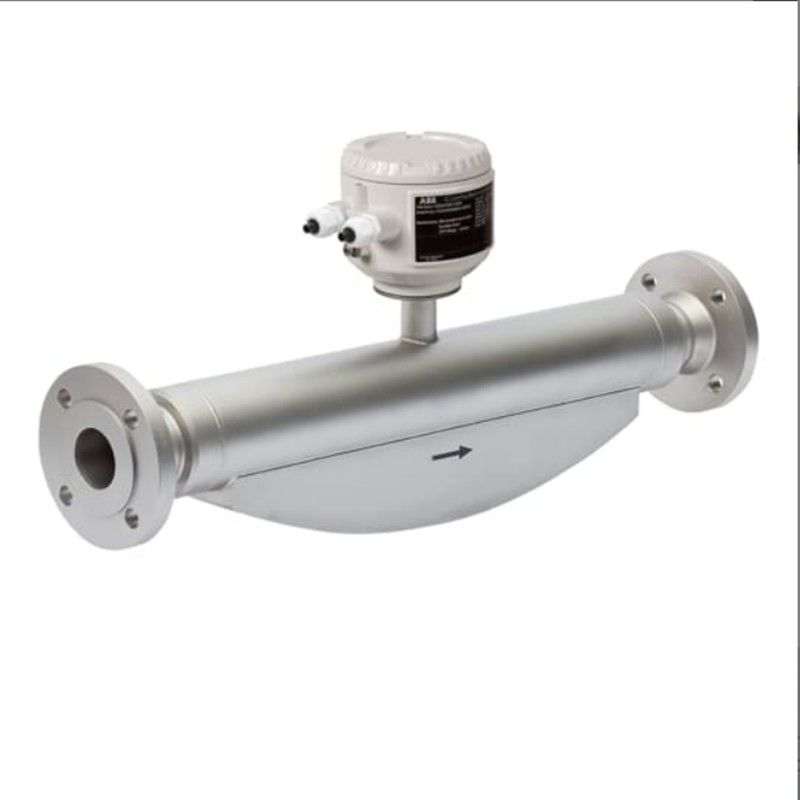

Coriolis mass flowmeter CoriolisMaster FCB130 and FCB150

General specifications:

• Nominal sizes / measuring ranges
  – DN 15 (1/2 in.) / 0 to 8,000 kg/h (17,637 lb/h)
  – DN 25 (1 in.) / 0 to 35,000 kg/h (77,162 lb/h)
  – DN 50 (2 in.) / 0 to 90,000 kg/h (198,416 lb/h)
  – DN 80 (3 in.) / 0 to 250,000 kg/h (551,156 lb/h)
  – DN 100 (4 in.) / 0 to 520,000 kg/h (1,146,404 lb/h)
  – DN 150 (6 in.) / 0 to 860,000 kg/h (1,895,975 lb/h)
• Ex approvals
  – ATEX zone 0/1/2, cFMus Div 1/2 and zone 0/1/2
• Wetted materials
  – 1.4404 / 1.4435 (316L) or Hasteloy C
• Accuracy for liquids
  FCB130
  – Mass and volume: 0.4 % o. r. / 0.25 % o. r.
  – Density: 10 g/l
  FCB150
  – Mass: 0.15 % o. r. / 0.1 % o. r., volume: 0.15 % o. r.
  – Density: 2 g/l or 1 g/l
• Measuring medium temperature
  FCB130
  – -50 to 160 °C (-58 to 320 °F)
  FCB150
  – -50 to 205 °C (-58 to 400 °F)
• Outputs
  – 2 digital out (pulse, frequency, contact)
  – Modbus
• Power supply
  – 11 to 30 V DC
