Orifice plates for flow FPD150
  • Orifice plates for flow FPD150
  • Orifice plates for flow FPD150
Orifice plates for flow FPD150

Orifice plates for flow FPD150

Brand Name ABB
Model Number FPD150
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

20ma abb flow meter

,

hart abb flow meter

,

20ma abb flow sensor

Product Description

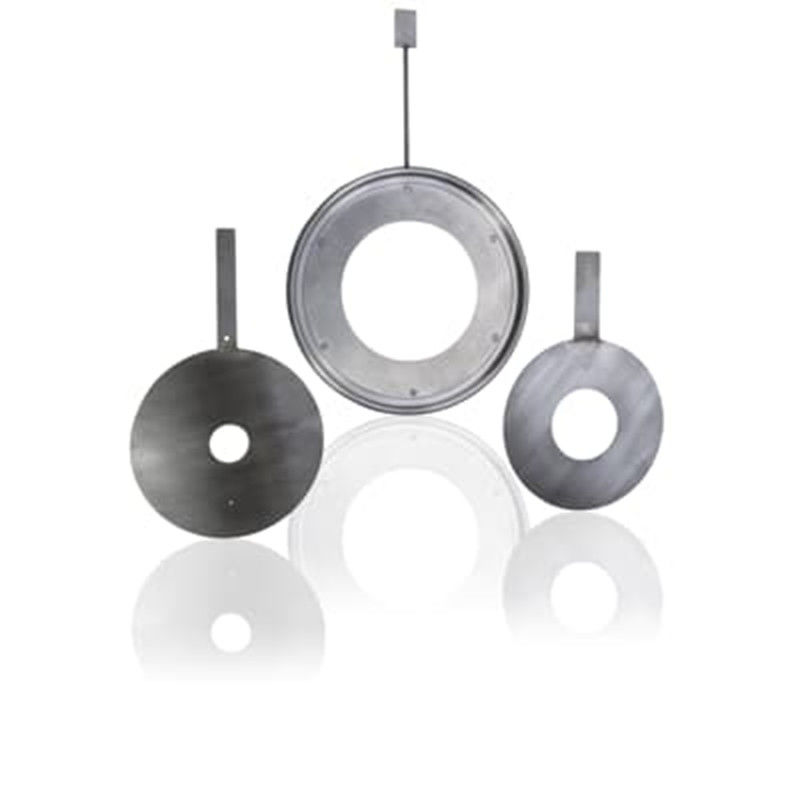

Flow measurement plates to fit between RF, FF or RTJ flanges

Available as Concentric (square edged, conical entrance and quarter circle profile) or Eccentric (eccentric and segmental profile) designs to measure the flow of clean or contaminated liquids, gases or steam.



Overview

The FPD150 is a range of flow measurement orifice plates, some of which are available on next day delivery if required, are available with a variety of profiles to handle a wide range of applications, from clean fluids and low viscosity liquids through to dirty fluids or high viscosity liquids.

They are usually supplied with a data tab welded to (or integral with) the circumference. On this tab can be engraved information such as the Tag Number and orifice plate bore, all of which are visible without removing the plate from the line.

Data

Orifice Plate designs:
– Concentric Square Edge Orifice Plate for clean liquids/gases/steam
– Quarter Circle Orifice Plate for viscous fluids
– Conical Entrance Orifice Plate for viscous fluids
– Eccentric Orifice Plate for dirty fluids
– Segmental Orifice Plate for dirty fluids
– Orifice Plate in holder to fit between RTJ pipe flanges
