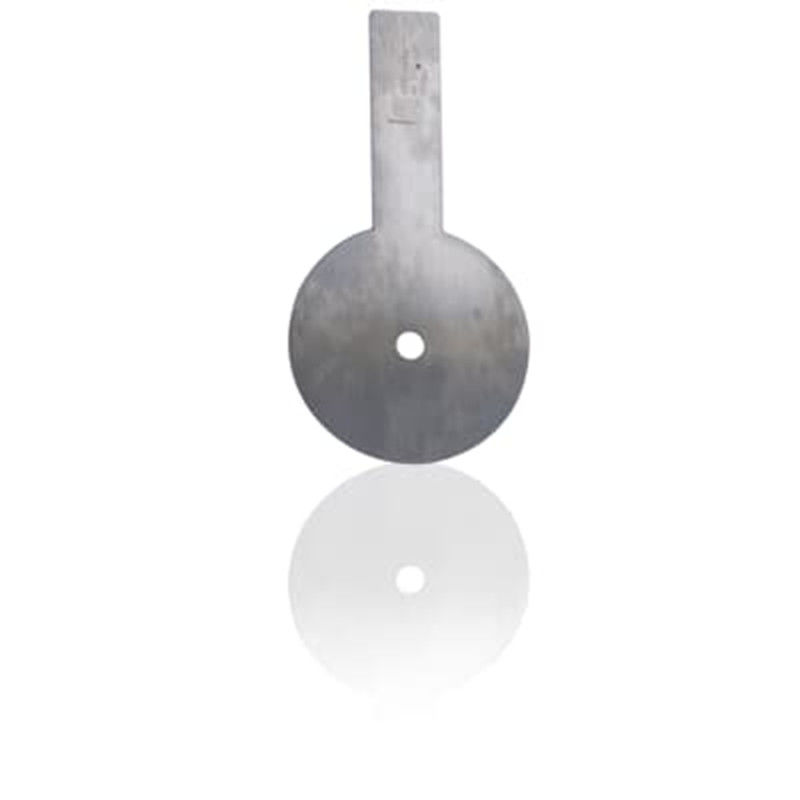

Restriction orifice plates FPD190
  • Restriction orifice plates FPD190
Restriction orifice plates FPD190

Restriction orifice plates FPD190

Brand Name ABB
Model Number FPD190
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

20ma abb flow meter

,

hart abb flow meter

,

20ma abb flow sensor

Product Description

The FPD190 restriction orifice plates are used where there is a requirement either to reduce the line pressure or alternatively to restrict the flowrate to a certain value.

Overview

The FPD190 restriction plate has an orifice bore (and plate thickness) that is calculated to achieve the required restriction to the flow rate or pressure drop whilst maintaining plate integrity. A multi-restriction assembly, consisting of several plates in series, can be engineered for use where the required pressure drop cannot be achieved (or where the noise level would be too high) across a single plate.

FPD190 restriction plates and assemblies are available in a wide range of materials to suit the process conditions.

Data

Product designs:
– restriction orifice plate
– multi restriction orifice spool

Restriction orifice plates FPD190 0Restriction orifice plates FPD190 1
