Abb Flow Sensor Orifice Carrier Assembly OCA For Different Applications
  • Abb Flow Sensor Orifice Carrier Assembly OCA For Different Applications
Abb Flow Sensor Orifice Carrier Assembly OCA For Different Applications

Abb Flow Sensor Orifice Carrier Assembly OCA For Different Applications

Brand Name ABB
Model Number Orifice carrier assemblies OCA
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

abb flow sensor OCA

,

OCA abb flow sensor

,

ABB Orifice carrier assembly

Product Description

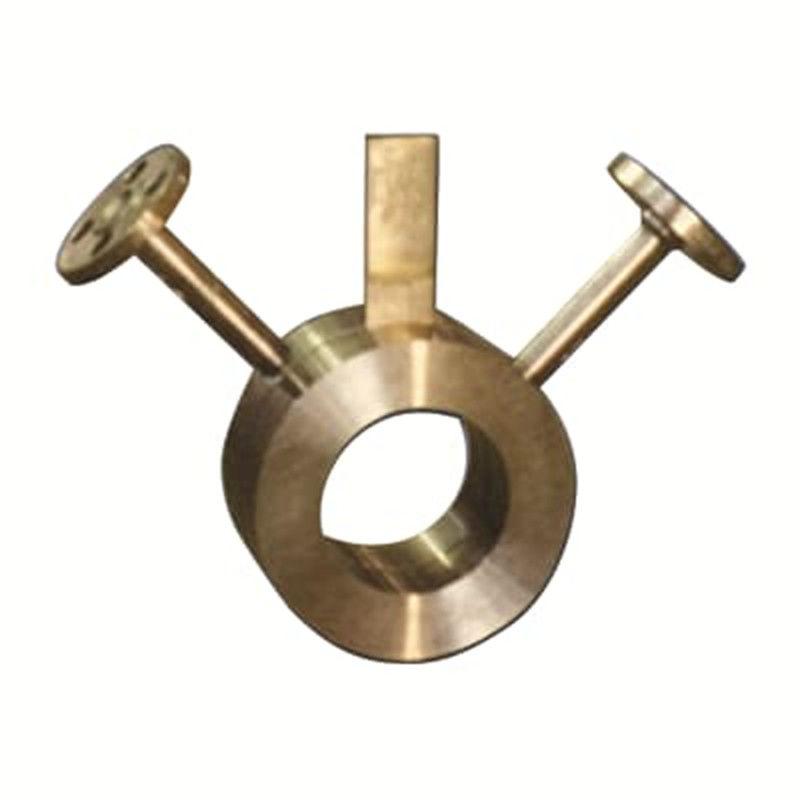

Orifice carrier assembly OCA

A more convenient alternative to simple orifice plates is an assembly comprising an orifice plate mounted in a carrier that already has the correct tapping points fitted. ABB has a wide range of these carrier assemblies for different applications.

Overview

Each assembly comprises an orifice plate mounted in (or integral with) a carrier that already has the correct tapping points fitted.

Data

The integral orifice carrier assembly is a one-piece orifice plate and carrier ring with integral corner differential pressure tappings and is designed to fit between raised-face flanges.

The split ring orifice carrier assembly is a dual-ring orifice carrier with differential pressure tappings and is designed to fit between raised face flanges. The carrier rings incorporate corner or flange taps.

Abb Flow Sensor Orifice Carrier Assembly OCA For Different Applications 0Abb Flow Sensor Orifice Carrier Assembly OCA For Different Applications 1
