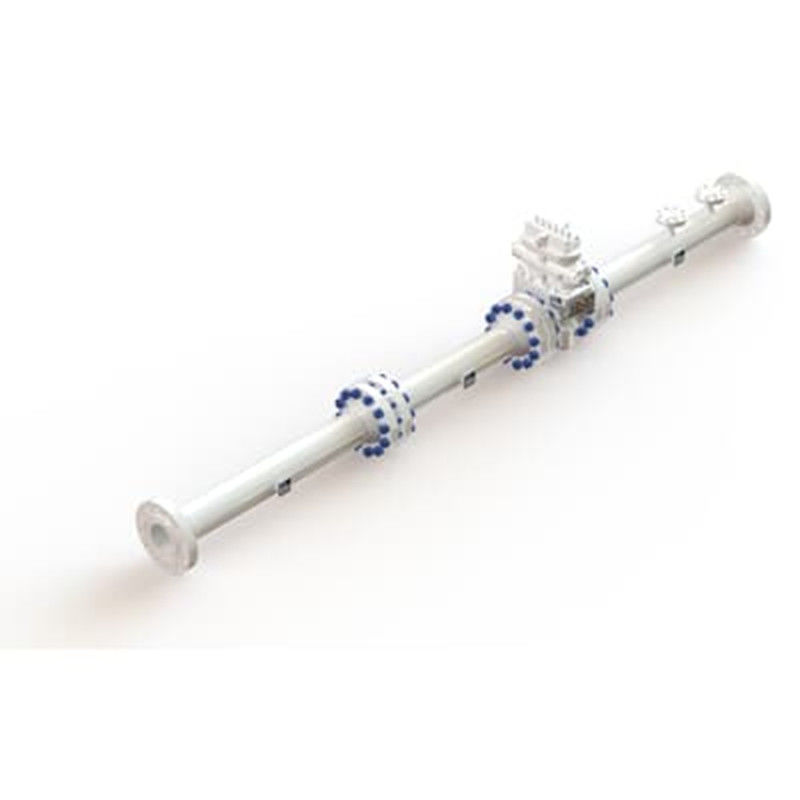

OMR ABB Flow Meter Orifice Meter Run ISO5167-1:2003 Certificated
  • OMR ABB Flow Meter Orifice Meter Run ISO5167-1:2003 Certificated
OMR ABB Flow Meter Orifice Meter Run ISO5167-1:2003 Certificated

OMR ABB Flow Meter Orifice Meter Run ISO5167-1:2003 Certificated

Brand Name ABB
Model Number Orifice meter run OMR
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

OMR ABB Flow Meter

,

ABB Flow Meter OMR

,

ABB orifice meter run

Product Description

Orifice meter run OMR

When high accuracy flow measurement of liquids, gases and steam is demanded from the primary flow element, an orifice flange assembly can be welded into a fabricated orifice meter run, incorporating the upstream and downstream pipe sections required by ISO5167-1:2003.



Overview

ABB standard meter runs comprise of an upstream section with 16 diameters of straight pipe and a downstream section with 8 diameters of straight pipe. The Fiscal version of the meter run is manufactured using specially selected pipe and the orifice calculations are based on the actual (not nominal) measured pipe internal diameters.

If higher accuracy is required, these assemblies can be flow calibrated.

Data

Flowmeter designs:
– FMR (Fabricated Orifice Meter Run)
– IMR (Integral Orifice Meter Run) incorporating kidney flange impulse connections

OMR ABB Flow Meter Orifice Meter Run ISO5167-1:2003 Certificated 0OMR ABB Flow Meter Orifice Meter Run ISO5167-1:2003 Certificated 1
