ABB Orifice Carrier Assembly With Integral Manifold FPD175
  • ABB Orifice Carrier Assembly With Integral Manifold FPD175
  • ABB Orifice Carrier Assembly With Integral Manifold FPD175

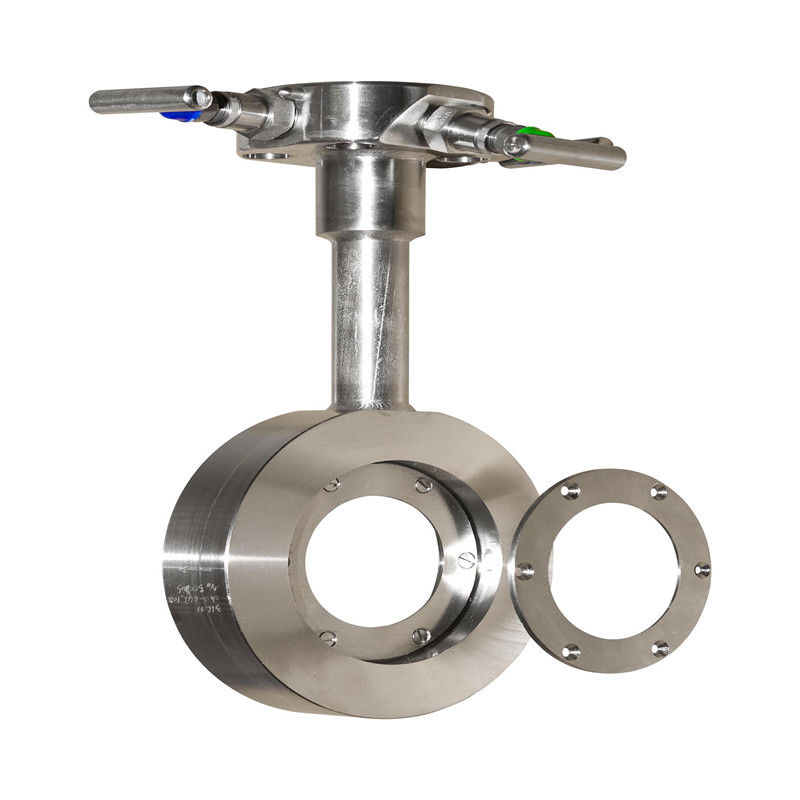

ABB Orifice Carrier Assembly With Integral Manifold FPD175

ABB Orifice Carrier Assembly With Integral Manifold FPD175

Brand Name ABB
Model Number Orifice carrier assembly with integral manifold FPD175
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

FPD175 Orifice Carrier Assembly

,

ABB Orifice Carrier Assembly

,

Manifold Orifice Carrier Assembly

Product Description

Orifice carrier assembly with integral manifold FPD175

A more convenient alternative to simple orifice plates is an assembly comprising an orifice plate mounted in a carrier that already has the correct tapping points fitted. ABB has a wide range of these carrier assemblies for different applications.



Overview

Part of the orifice carrier range from ABB - Combining the convenience and ease of installation of an orifice carrier assembly, an integral, welded 3- or 5- valve manifold and an optional integral temperature element. Options to reduce Pipe Straight Runs with optional Multi Hole Balanced Orifice Plate, significantly improves uncertainty and reduces Head Loss. Choice of 0.4 or 0.65 Beta Ratio ensures ease of configuration.

Data

  • Enhanced flexibility for the user
    – create a one-piece flowmeter by direct-mounting a DP or Multivariable transmitter
    – or mount transmitter remotely for applications where direct-mounting is not practicable or not required

  • Low cost maintenance
    – Optional removable orifice plates for on site, low cost solutions to changes in process data or element wear/damage

  • Accurate installation in the pipeline, every time
    – Centralising tool supplied as standard, ensuring accurate centralisation of meter in the pipeline

ABB Orifice Carrier Assembly With Integral Manifold FPD175 0ABB Orifice Carrier Assembly With Integral Manifold FPD175 1
