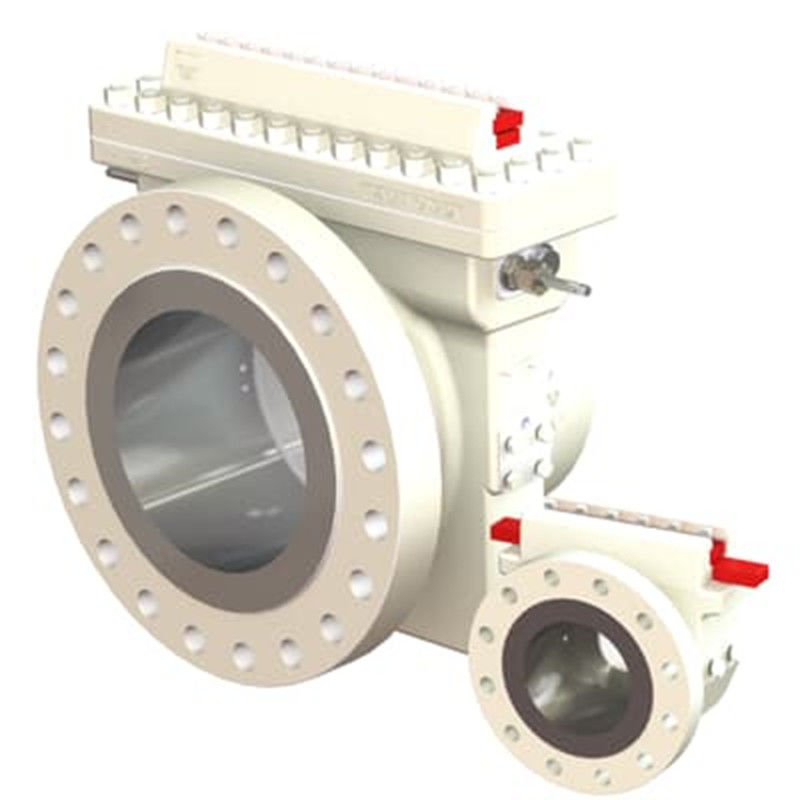

FPD201 ABB Flow Meter Single Chamber Orifice Fitting
  • FPD201 ABB Flow Meter Single Chamber Orifice Fitting
FPD201 ABB Flow Meter Single Chamber Orifice Fitting

FPD201 ABB Flow Meter Single Chamber Orifice Fitting

Brand Name ABB
Model Number Single chamber orifice fitting FPD201
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

FPD201 ABB Flow Meter

,

ABB Flow Meter FPD201

,

ABB Single Chamber Orifice Fitting

Product Description

The FPD201 is a single- chamber orifice fitting suitable for fiscal (custody transfer) applications. It enables the orifice plate to be inspected and / or replaced without removing the fitting itself from the pipeline.



Overview

The FPD201 is a single chamber orifice fitting. It enables the orifice plate to be inspected and / or replaced without removing the fitting itself from the pipeline. However, the process must be shut down and depressurized before the plate can be removed.

Dual chamber fittings are available that allow “live” orifice plate changes or routine inspection – these are the FPD212 and FPD220.

Data

Here are the key features of the FPD201:

  • Economical orifice installation
    Orifice plate is serviceable without removing fitting from pipeline
  • Pipe sizes up to 30 in. (750 mm)
  • Pressures up to ANSI 2500 rating
    For pipe sizes up to 300 mm (12 in.)
  • Comprehensive testing and documentation package
    supplied as standard

FPD201 ABB Flow Meter Single Chamber Orifice Fitting 0FPD201 ABB Flow Meter Single Chamber Orifice Fitting 1
