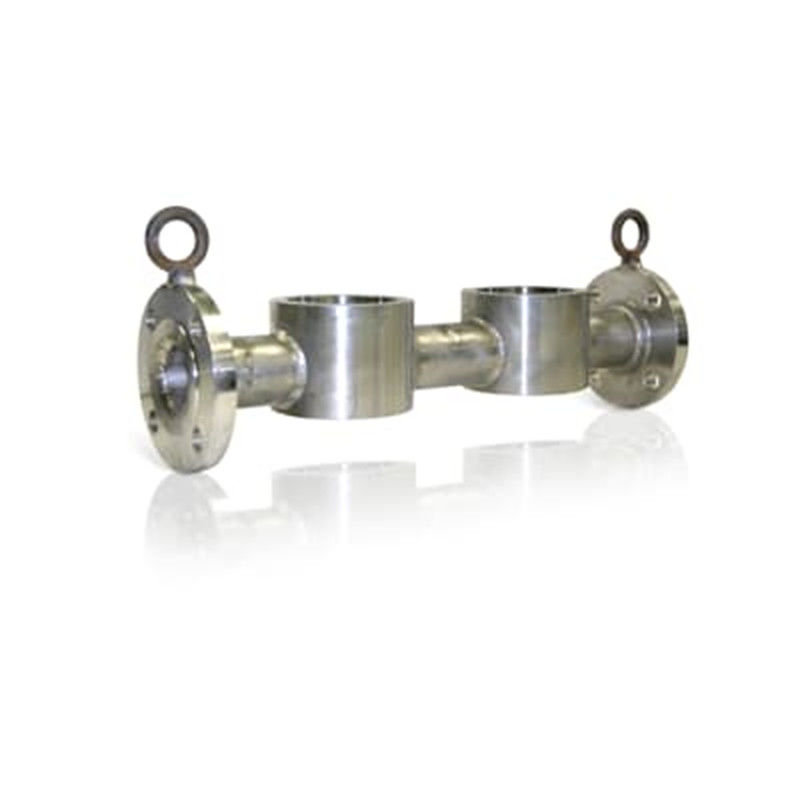

FPD470C Wedge Meter Flow Element ABB Flow Measurement Products
  • FPD470C Wedge Meter Flow Element ABB Flow Measurement Products
FPD470C Wedge Meter Flow Element ABB Flow Measurement Products

FPD470C Wedge Meter Flow Element ABB Flow Measurement Products

Brand Name ABB
Model Number Wedge meter flow element FPD470C
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

abb wedge type flow meter

,

FPD470C wedge type flow meter

,

20ma wedge meter flow measurement

Product Description

Wedge meter flow element FPD470C

FPD470C wedge meters have DP connections for Chemical Tee remote seals. The flow element consists of a body and wedge flow restriction. This restriction creates a differential pressure in proportion to the square of the volumetric flow rate.

Overview

The FPD470C wedge restriction has no critical surface dimensions, or sharp edges, that will affect measurement accuracy as the result of normally expected wear.

Data

FPD470C Wedge Meter Flow Element ABB Flow Measurement Products 0FPD470C Wedge Meter Flow Element ABB Flow Measurement Products 1

  • Measures liquids, gas and steam

  • High Accuracy ±0.5 % of rate

  • Bi-directional flow

  • Low Reynolds number measurement (as low as Rd 500)

  • Minimum upstream and downstream piping requirements

  • Standard sizes 0.5 to 24 inch

  •
