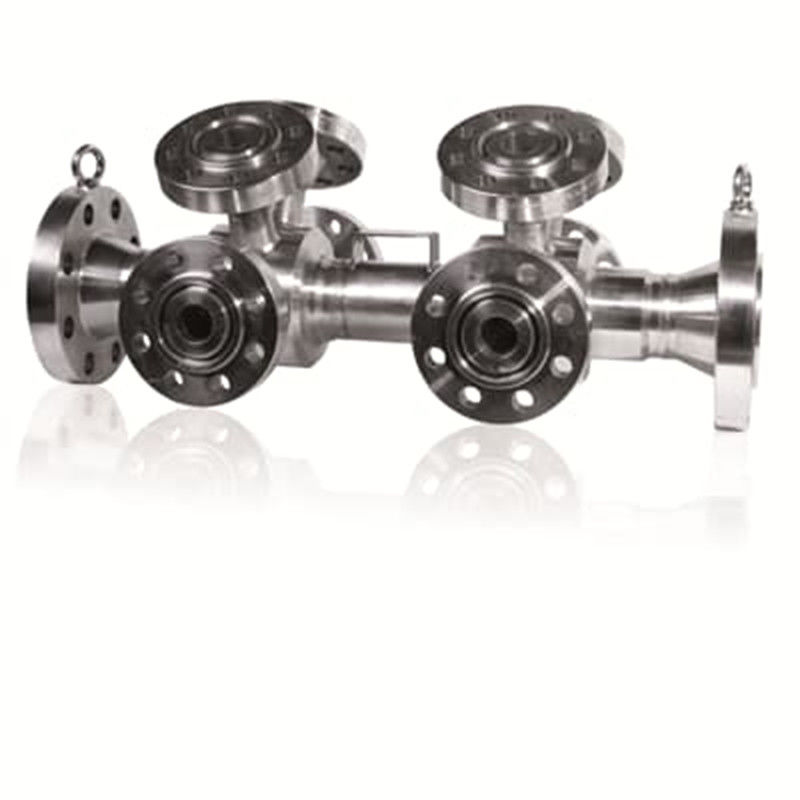

FPD470F ABB Flow Meter Wedge Meter Flow Element
  • FPD470F ABB Flow Meter Wedge Meter Flow Element
FPD470F ABB Flow Meter Wedge Meter Flow Element

FPD470F ABB Flow Meter Wedge Meter Flow Element

Brand Name ABB
Model Number FPD470F
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

FPD470F ABB Flow Meter

,

ABB Flow Meter FPD470F

,

20ma wedge flow element

Product Description

Wedge meter flow element FPD470F

The FPD470F is a wedge meter with DP connections for flanged remote seals. The flow element consists of a body and wedge flow restriction. This restriction creates a differential pressure in proportion to the square of the volumetric flow rate.

Overview

The FPD470F wedge restriction has no critical surface dimensions, or sharp edges, that will affect measurement accuracy as the result of normally expected wear.

Data

FPD470F ABB Flow Meter Wedge Meter Flow Element 0

  • Measures liquids, gas and steam

  • High Accuracy ±0.5 % of rate

  • Bi-directional flow

  • Low Reynolds number measurement (as low as Rd 500)

  • Minimum upstream and downstream piping requirements

  • Standard sizes 1.5 to 24 inch

  •
