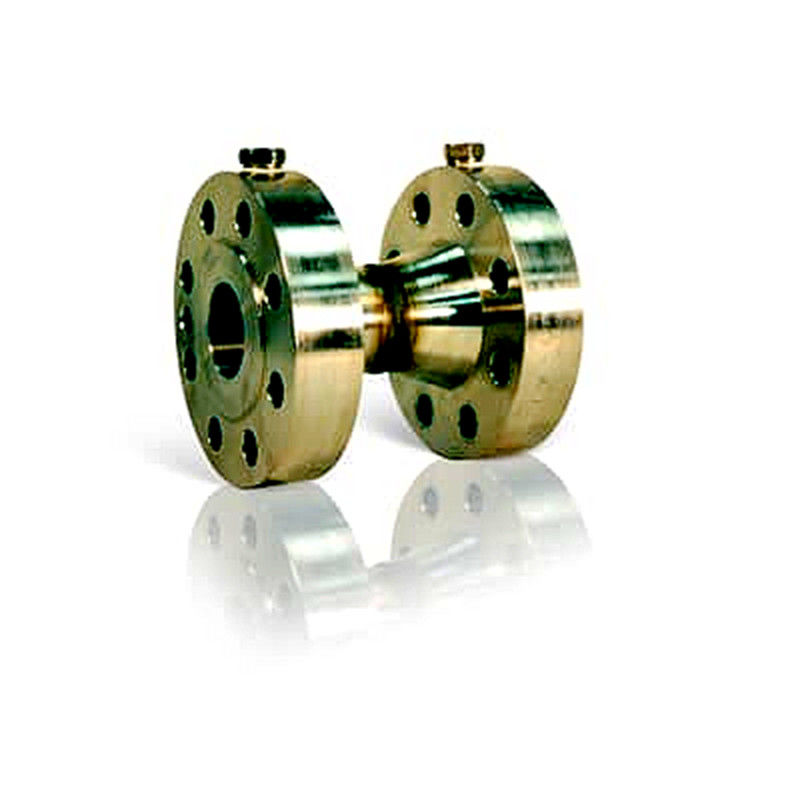

FPD470P ABB Wedge Meter Flow Element With High Accuracy
  • FPD470P ABB Wedge Meter Flow Element With High Accuracy
FPD470P ABB Wedge Meter Flow Element With High Accuracy

FPD470P ABB Wedge Meter Flow Element With High Accuracy

Brand Name ABB
Model Number FPD470P
Document Product Brochure PDF
Product Details
Accuracy:
High
Communication Protocol:
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid:
Gas, Liquid
Installation Type:
In-line, Insertion
Material:
Stainless Steel, Alloy Steel, Titanium
Measuring Principle:
Differential Pressure
Output Signal:
4-20mA
Pressure Range:
0-100Bar
Process Connection:
Flange, Thread, Sanitary
Product Name:
ABB Flow Measurement Products
Product Type:
Flow Measurement
Range:
Wide
Temperature Range:
0-150℃
Warranty:
1 Years
Highlight:

20ma abb wedge meter

,

FPD470P abb wedge meter

,

4ma wedge flow element

Product Description

Wedge meter flow element FPD470P

The FPD470P is a wedge meter with threaded DP connections for connection to conventional transmitters . The flow element consists of a body and wedge flow restriction. This restriction creates a differential pressure in proportion to the square of the volumetric flow rate.

Overview

The FPD470P wedge restriction has no critical surface dimensions, or sharp edges, that will affect measurement accuracy as the result of normally expected wear.

Data

FPD470P ABB Wedge Meter Flow Element With High Accuracy 0FPD470P ABB Wedge Meter Flow Element With High Accuracy 1

  • Measures liquids, gas and steam

  • High Accuracy ±0.5 % of rate

  • Bi-directional flow

  • Low Reynolds number measurement (as low as Rd 500)

  • Minimum upstream and downstream piping requirements

  • Standard sizes 1 to 24 inch
