TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter
  • TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter
  • TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter
  • TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter
  • TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter
  • TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter
TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter

TTF200 ABB Level Transmitter Field-Mount Temperature Transmitter

Brand Name ABB
Model Number TTF200
Document Product Brochure PDF
Product Details
Brand:
ABB
Model Number:
TTF200
Product Name:
ABB Temperature Transmitter
Type:
Temperature Module
Material:
Stainless Steel
Output Signal:
4~20mA HART
Power Supply:
11-42V DC
Protection:
IP66/IP67
Highlight:

TTF200 ABB Level Transmitter

,

field mount ABB Level Transmitter

,

ip66 abb temperature transmitter

Product Description

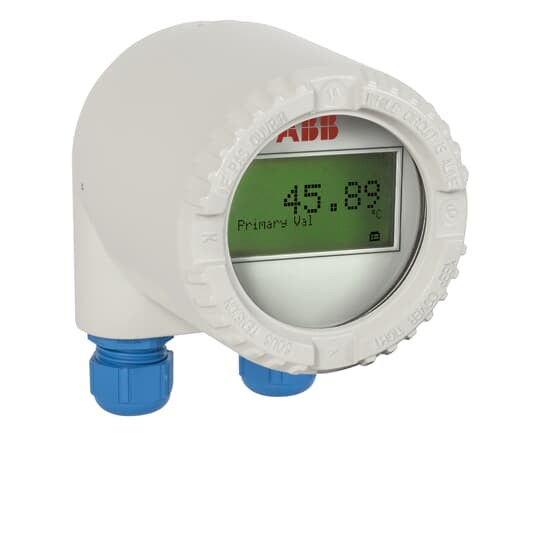

Field-mount temperature transmitter TTF200

The TTF200 HART temperature transmitter completes the TTx200 / TTx300 product family in proven two-wire technology.



Overview

The field-mount temperature transmitter TTF200 is provided for all HART standard applications in temperature measurement with one sensor. The transmitter supports the same functionality as the TTF300, but without sensor redundancy and sensor drift monitoring. It can be configured with ABB-tools such as DAT200 (Asset Vision Basic) via DTM, Handheld via EDD, FIM (Field Information Manager) or any standard tool using FDI-/FDT-Technology.

Data

  • Universal sensor input
    – RTD, thermocouple, Ω, mV
  • Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
  • Output signal
    – 4 to 20 mA, HART
  • Accuracy 0.1 %, long-term stability 0.05 % per year
  • Wire break / corrosion monitoring in accordance with NE 89
  • Diagnostic information in accordance with NE 107
  • IP 66 / IP 67, NEMA 4X aluminum or stainless steel field-mount housing
  • Large, user-friendly LCD indicator Type BS
  • Approvals for explosion protection
    – ATEX, IECEx, zone 0

Tags:

ip66 abb temperature transmitter,

field mount ABB Level Transmitter,

TTF200 ABB Level Transmitter
