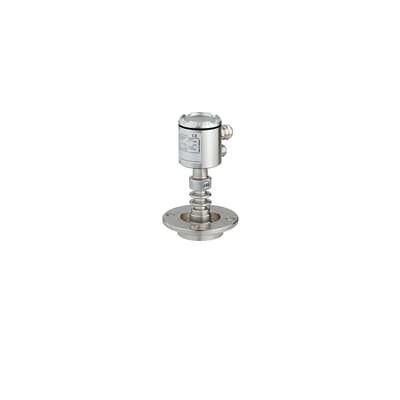

Gauge ABB Pressure Transmitter 261GC, 261GG, 261GJ, 261GM, 261GN

Gauge ABB Pressure Transmitter 261GC, 261GG, 261GJ, 261GM, 261GN

Brand Name ABB
Model Number 261GC, 261GG, 261GJ, 261GM, 261GN
Document Product Brochure PDF
Product Details
Customized Support:
OEM
Mounting Bracket:
316 Stainless Steel
Supply Voltage Effect:
0.005% Span Per Volt
Output Signal:
4~20mA
Measurement Range:
0.1...0..100MPA
Power Supply:
24VDC
Operating Temperature:
40~85℃
Electrical Output Signal:
DC 0 ... 10
Highlight:

ABB Pressure Transmitter 261GC

,

ABB Pressure Transmitter 261GG

,

261GN abb gauge pressure transmitter

Product Description

Gauge pressure transmitter 261GC, 261GG, 261GJ, 261GM, 261GN

The compact transmitter class for gauge pressure and level with frontbonded diaphragms works within a broad selection of variants, options, fill fluids and wetted materials.



Overview

The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems.
The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.

The wide range of available process connections meets even special industrial requirements:
  • Threaded connections: e.g. for the power, pulp/paper, or oil and gas industries
  • Flange connections: e.g. for the chemical industry
  • Hygienic connections: e.g. for the pharmaceutical or food and beverages industries

Data

  • Base accuracy: ± 0.1 %
  • Span limits: 6 to 60000 kPa; 24 inH2O to 8700 psi
  • Output signal: 4 to 20 mA, HART
  • Conforms to SIL2 acc. to IEC 61508 / IEC 61511
  • Full compliance with PED Category III
