266CSH ABB Pressure Transducer 4~20mA Diaphragm Differential Pressure Sensor Transmitter
  • 266CSH ABB Pressure Transducer 4~20mA Diaphragm Differential Pressure Sensor Transmitter
  • 266CSH ABB Pressure Transducer 4~20mA Diaphragm Differential Pressure Sensor Transmitter
  • 266CSH ABB Pressure Transducer 4~20mA Diaphragm Differential Pressure Sensor Transmitter
266CSH ABB Pressure Transducer 4~20mA Diaphragm Differential Pressure Sensor Transmitter

266CSH ABB Pressure Transducer 4~20mA Diaphragm Differential Pressure Sensor Transmitter

Brand Name ABB
Model Number 266CSH
Document Product Brochure PDF
Product Details
Customized Support:
OEM
Mounting Bracket:
316 Stainless Steel
Supply Voltage Effect:
0.005% Span Per Volt
Output Signal:
4~20mA
Measurement Range:
0.1...0..100MPA
Power Supply:
24VDC
Operating Temperature:
40~85℃
Electrical Output Signal:
DC 0 ... 10
Highlight:

266CSH ABB pressure transducer

,

20ma diaphragm pressure transmitter

,

4ma diaphragm pressure transmitter

Product Description

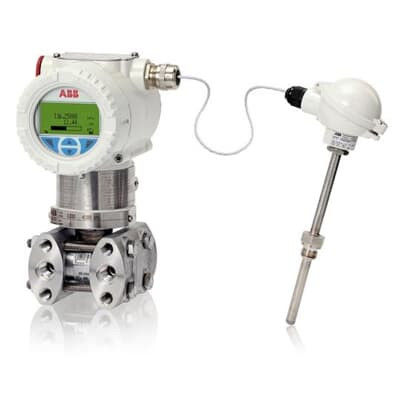

Multivariable transmitter 266CSH

The multivariable transmitters in the 266CSH calculates the mass flow for gases, vapours and liquids with dynamic flow compensation directly from the three process variables of differential pressure, absolute pressure and temperature.



Overview

The multivariable transmitters in the 266CSH are used for differential pressure flow measurements. Apart from pressure- and / or temperature-dependent changes to the density of the fluid, the parameters such as the discharge coefficient, thermal expansion of pipelines and primary device and the Reynolds number are also corrected. It can also be used for DP level measurement if density compensation is necessary due to process temperature changes. This could make any level measurement much more reliable.

In addition to high precision, the multivariable 266 also offers the advantage that only a single device needs to be used for the measuring point instead of several transmitters and a flow calculator.

Data

  • Base accuracy: ± 0.075 %
  • Reduced process penetrations save money and reduce the risk of leakage
  • High static working pressure option (41 MPa, 6000 psi) for power plants, pipelines or oil and gas production
  • True draft range (down to 0.05 kPa, 0.2i nH2O) transmitter
  • Local operation with LCD with TTG (Through The Glass) technology without the need of opening the housing
  • Detection of plugged impulse lines
  • Integrated totalizers and in addition a binary output as pulse or frequency output for activating external totalizers
  • Exchangeable electronics with automatic configuration capability
