266CRH Diaphragm Pressure Transducer 4-20ma Pneumatic Differential Pressure Transmitter
  • 266CRH Diaphragm Pressure Transducer 4-20ma Pneumatic Differential Pressure Transmitter
266CRH Diaphragm Pressure Transducer 4-20ma Pneumatic Differential Pressure Transmitter

266CRH Diaphragm Pressure Transducer 4-20ma Pneumatic Differential Pressure Transmitter

Brand Name ABB
Model Number 266CRH
Document Product Brochure PDF
Product Details
Customized Support:
OEM
Mounting Bracket:
316 Stainless Steel
Supply Voltage Effect:
0.005% Span Per Volt
Output Signal:
4~20mA
Measurement Range:
0.1...0..100MPA
Power Supply:
24VDC
Operating Temperature:
40~85℃
Electrical Output Signal:
DC 0 ... 10
Highlight:

266CRH diaphragm pressure transducer

,

20ma pneumatic differential pressure transmitter

,

4ma pneumatic differential pressure transmitter

Product Description

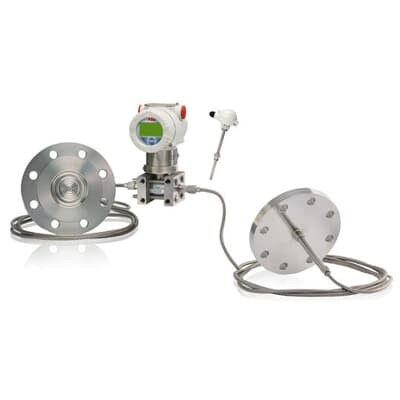

Multivariable transmitter 266CRH

The multivariable transmitters in the 266CRH with remote diaphragm seals calculates the mass flow for gases, vapours and liquids with dynamic flow compensation directly from the three process variables of differential pressure, absolute pressure and temperature.



Overview

The multivariable transmitters in the 266CRH are used for differential pressure flow measurements. Apart from pressure- and / or temperature-dependent changes to the density of the fluid, the parameters such as the discharge coefficient, thermal expansion of pipelines and primary device and the Reynolds number are also corrected. It can also be used for DP level measurement if density compensation is necessary due to process temperature changes. This could make any level measurement much more reliable.
In addition to high precision, the multivariable 266 also offers the advantage that only a single device needs to be used for the measuring point instead of several transmitters and a flow calculator.

Data

  • Base accuracy: ± 0.075 %
  • Reduced process penetrations save money and reduce the risk of leakage
  • High static working pressure option (41 MPa, 6000 psi) for power plants, pipelines or oil and gas production
  • Local operation with LCD with TTG (Through The Glass) technology without the need of opening the housing
  • Integrated totalizers and in addition a binary output as pulse or frequency output for activating external totalizers
  • Exchangeable electronics with automatic configuration capability
  • Flexible process connections and high selection of corrosion resistant material due to all welded diaphragm seals

Tags:

HART differential pressure transmitter,

PGP100 pneumatic transmitter,

abb differential pressure measurement
