2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
  • 2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN
2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN

2600t ABB Pressure Transmitter 261AC, 261AG, 261AJ, 261AM, 261AN

Brand Name ABB
Model Number 261AC, 261AG, 261AJ, 261AM, 261AN
Document Product Brochure PDF
Product Details
Customized Support:
OEM
Mounting Bracket:
316 Stainless Steel
Supply Voltage Effect:
0.005% Span Per Volt
Output Signal:
4~20mA
Measurement Range:
0.1...0..100MPA
Power Supply:
24VDC
Operating Temperature:
40~85℃
Electrical Output Signal:
DC 0 ... 10
Highlight:

261AG abb pressure transmitter 2600t

,

261AC abb pressure transmitter 2600t

,

261AJ pressure indicator transmitter

Product Description

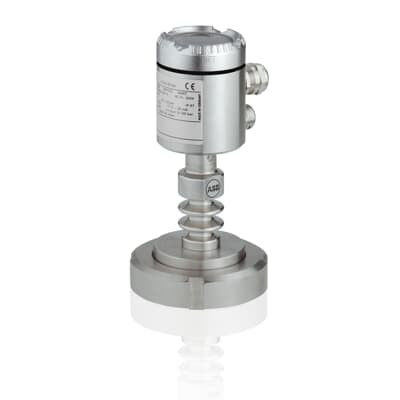

Absolute pressure transmitter 261AC, 261AG, 261AJ, 261AM, 261AN

The compact transmitter class for absolute pressure with frontbonded diaphragms works within a broad selection of variants, options, fill fluids and wetted materials.



Overview

The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems.
The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.

The wide range of available process connections meets even special industrial requirements:
  • Threaded connections: e.g. for the power, pulp/paper, or oil and gas industries
  • Flange connections: e.g. for the chemical industry
  • Hygienic connections: e.g. for the pharmaceutical or food and beverages industries

Data

  • Base accuracy: ± 0.1 %
  • Span limits: 6 to 3000 kPa abs; 45 mmHg to 435 psia
  • Output signal: 4 to 20 mA, HART
  • Conforms to SIL2 acc. to IEC 61508 / IEC 61511
  • Full compliance with PED Category III
